1. General:
Using industrial-grade CPU, strong anti-interference ability; Multiple input signal and output types are available; Multiple alarm types, suitable for the use of different applications; Stable and reliable performance, meet low-cost temperature control requirements.
2. Features:
(1) Fuzzy PID, control fast & smooth
(2) Input signal type can be set up by software
(3) Thermocouple/RTD break alarm
(4) Thermocouple inverse / RTD short alarm
(5) PV bias, PID auto-tuning, alarm delay, etc.
3. Specifications:
| Name | |
| Power Supply | AC85~265V, 50/60Hz |
| Accuracy | ±0.5%F.S. |
| Input Signal | Thermocouple (K, E, J, T) RTD (Pt100) |
| Display Unit | Dual 3-digit LED |
| Resolution | 1℃ |
| Control Method | PID with auto-tuning, ON/OFF |
| Control Output | Relay contact, AC250V/3A SSR Drive (Voltage pulse) D.C. 4~20mA |
| Alarm Mode | Absolute, Deviation, Range |
| Alarm Output | Relay contact, AC250V/3A |
| Working Circumstance | 0~50℃, 25~85%RH |
| Panel Size (mm) | 48*48,72*72,48*96,96*48,96*96 |
| Mount Size(mm) | 44*44,68*68,44*92,92*92 |
4. Application:
Can be used to control temperature in water treatment, refrigeration, electric heating products, such as plastic machine, printing machinery, packaging machinery, electric stove, oven, etc.
5. Ordering Code:
| No. | Name | |
| ① | Panel Size | 4:48*48mm5:48*96mm6:96*48mm 7:72*72mm 9:96*96MM |
| ② | Control Method | P: ON/OFFF: PID with auto-tuning |
| ③ | Input Signal | P03:Pt100(-50~550℃)
K02:K(-50~750℃) E02:K(-50~440℃) J02:K(-50~580℃) T02:K(-50~400℃) |
| ④ | Control Output | M:Relay contact(AC250V,3A) V:SSR Drive(Voltage Pluse) 8:DC4~20mA N:None |
| ⑤ | Alarm | M:Relay Contact(AC250V,3A) N:None |
| ⑥ | Menu Type | A:Menu for ON/OFF controlC:Menu for PID control |
6. Production
Product Tags:
|
|

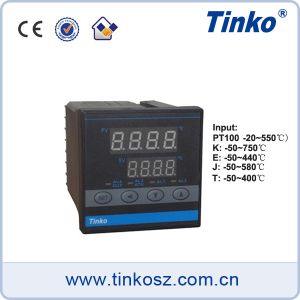

Tinko digital temperature controller indicator measuring instrument (CTL-7) Images
|
